LiftMaster CSW24UL

Documentation

Description

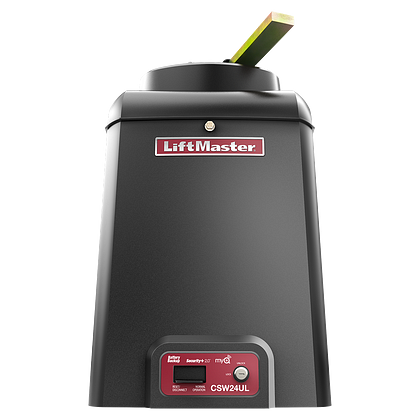

LiftMaster CSW24UL

Reliable:

Battery backup provides seamless access by providing standby power when the power is down
Smooth start/stop operation and mid-travel reversal extend hardware life of the gate and operator
Surge suppression provides industrial surge and lightning protection against strikes up to 50 feet away
Heavy-duty commercial gear driven transmission provides unsurpassed reliability
Warranty 5 Years Commercial, 7 Years Residential

Smart:

myQ technology enables you to securely control and monitor your gate operator from anywhere
Wireless dual-gate communication synchronizes gate opening/closing and eliminates expensive driveway trenching costs (requires second control box)
Synchronized close simultaneously closes gates

Safe and Secure:

Security+ 2.0 Safeguards facility access with rolling code technology, opening for registered devices only
Emergency disconnect: simple-to-use release handle allows gate to be operated manually and maintain limit position once reengaged
Fire department compliance allows gate to auto-open upon loss of AC power or battery depletion
Quick close and anti-tailgate quickly secure property, preventing unauthorized access
UL listed gate operators with monitored safety entrapment protection devices

Mechanics	– 24VDC Continuous-Duty Motor – Operator Duty Rating : High-Cycle, High-Temperature Continuous Duty – Wormgear Reduction: 2 Commercial Oil-Bath Gearboxes Providing 900:1 Wormgear Reduction
Power	– 120/230VAC Single-Phase – Optional Kit (3PHCONV) to Convert an Input Voltage of 208/230/460/575VAC to an Output Voltage of 120VAC – Accessory Power : 24VDC 500mA Max. – Solar-Ready, Ultra-Reliable System Delivers Power When and Where You Need It (LMRRUL/LMTBUL Heater Option Not Recommended for Solar Applications)
Commercial-Grade Design	– Chassis : Constructed with 1/4 in. black powder coated steel for rust prevention – Cover : High-Density, UV-Resistant Polycarbonate 2-Piece for Heat and Corrosion Resistance – UL® Usage Classification : I, II, III and IV – Operator Weight : 206 lbs.
Working Temperature	WITHOUT HEATER -4 ° F (-20 ° C) to 140 ° F (60 ° C) WITH OPTIONAL HEATER (HTR) -40 ° F (-40 ° C) to 140 ° F (60 ° C)
Gate Travel Speed	Opens 90° in 13–15 Seconds

LiftMaster makes access simple and secure in users' homes, communities, workplaces, and businesses.
