LiftMaster HDSW24UL

24VDC Heavy-Duty Variable Speed Swing Gate Operator

Ideal for heavy gate and extreme applications

Reliable

  • Continuous-Duty Gate Operation Built with a custom heavy-duty gear box, size 80, direct drive 1,600:1 gear ratio.
  • Custom 1.5 HP Peak Brushless DC Motor Delivers up to 6 million cycles.
  • Variable Cycle Speed Adjusts to meet application needs from 13 to 36 sec. for a 90-degree opening.
  • Smooth start/stop operation And mid-travel reversal extend operator hardware life.
  • Standard Arm (Included) Moves gates up to 2,800 lbs.
  • Custom Reinforced Long Arm (Optional) Moves gates up to 4,500 lbs.

Smart

  • Powered by myQ®For full insight and control over community and facility access points. Monitor and control multiple communities with smart community access. Improve warehouse efficiency and productivity with smart facility access.*
  • FOUR PROGRAMMABLE AUXILIARY RELAYS Accommodate more accessories.
  • WIRELESS DUAL-GATE COMMUNICATION Synchronizes gate operation and eliminates costly trenching; set speed independently if needed.

Safe and Secure

  • Quick Close and Anti-Tailgate Quickly secures property, preventing unauthorized access.
  • Posilock® Automatically closes the gate when it is pushed from the closed limit.
  • UL® Listed Gate operator with monitored safety entrapment protection devices.

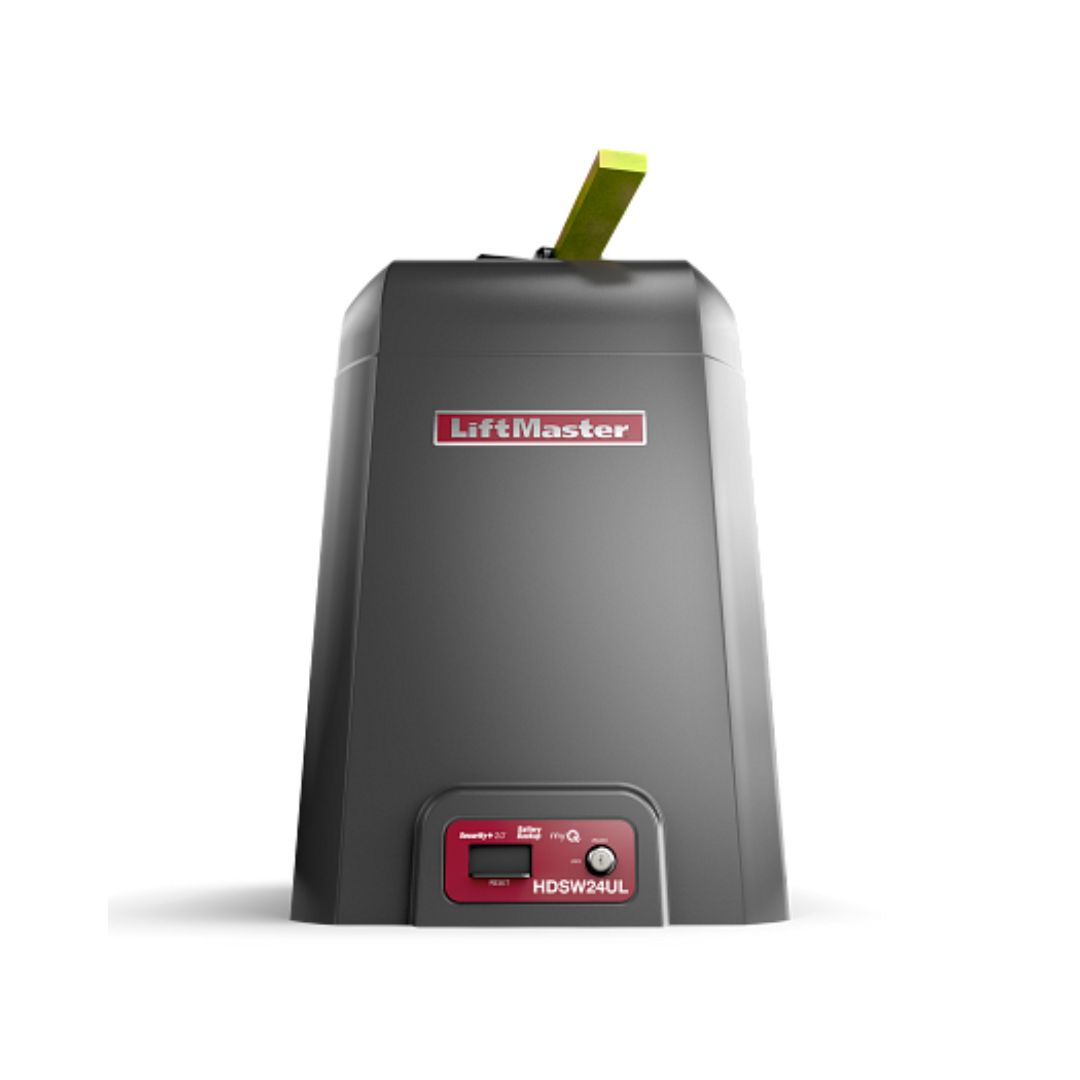

LiftMaster HDSW24UL
LiftMaster HDSW24UL - Image 2

LiftMaster HDSW24UL Spec Sheets

Documentation

Description

24VDC Heavy-Duty Variable Speed Swing Gate Operator

Ideal for heavy gate and extreme applications

Reliable

  • Continuous-Duty Gate Operation Built with a custom heavy-duty gear box, size 80, direct drive 1,600:1 gear ratio.
  • Custom 1.5 HP Peak Brushless DC Motor Delivers up to 6 million cycles.
  • Variable Cycle Speed Adjusts to meet application needs from 13 to 36 sec. for a 90-degree opening.
  • Smooth start/stop operation And mid-travel reversal extend operator hardware life.
  • Standard Arm (Included) Moves gates up to 2,800 lbs.
  • Custom Reinforced Long Arm (Optional) Moves gates up to 4,500 lbs.

Smart

  • Powered by myQ®For full insight and control over community and facility access points. Monitor and control multiple communities with smart community access. Improve warehouse efficiency and productivity with smart facility access.*
  • FOUR PROGRAMMABLE AUXILIARY RELAYS Accommodate more accessories.
  • WIRELESS DUAL-GATE COMMUNICATION Synchronizes gate operation and eliminates costly trenching; set speed independently if needed.

Safe and Secure

  • Quick Close and Anti-Tailgate Quickly secures property, preventing unauthorized access.
  • Posilock® Automatically closes the gate when it is pushed from the closed limit.
  • UL® Listed Gate operator with monitored safety entrapment protection devices.

Additional information

Mechanics

– 24VDC Brushless Cont inuous-Duty Motor
– Operator Duty Rating: High-Cycle, High-Temperature
Continuous-Duty
– Direct Drive

Power

– 120/240VAC Single-Phase
– Accessory Power : 24VDC 1 A Max. Output ; Switched and Unswitched Power
– Optional Kit (3PHCONV) to Convert a 3-Phase Input Voltage of 208/240/480/575VAC to an Output Voltage of 120VAC
– Solar-Ready, Ultra-Reliable System Delivers Power When and Where You Need It (LMRRUL/LMTBUL Heater Option
Not Recommended for Solar Applications)

Commercial-Grade Design

– Chassis: Constructed wi th 1/4 in. Steel , Powder Coated
– Cover : High-Density, UV-Resistant Polyethylene 2-Piece Cover for Excellent Heat and Corrosion Resistance
– Warranty: 5 Years Commercial , 7 Years Residential
– UL® Usage Classification: I , II , III and IV
– Operator Weight : 249 lbs.

Working Temperature

WITHOUT HEATER
-4 ° F (-20 ° C) to 140 ° F (60 ° C)

WITH OPTIONAL HEATER (HTR)
-40 ° F (-40 ° C) to 140 ° F (60 ° C)

Variable Gate Travel Speed

13-36 sec for a 90° opening
