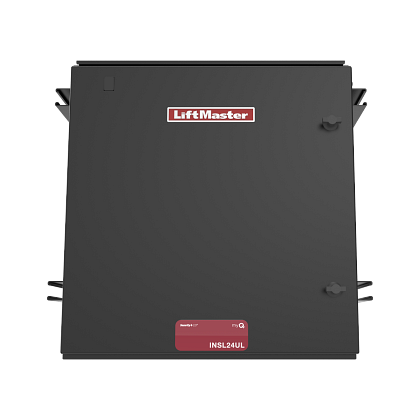

LiftMaster INSL24UL

Description

24VDC High-Duty Industrial Slide Gate Operator

The LiftMaster® Heavy-Duty Industrial Slide Gate Operator builds on the brand’s legacy of reliability. With the strength to effortlessly move 2,200-pound gates, the operator allows Facility Managers to focus on everyday responsibilities without worrying about failure or frequent maintenance. Easy to install, retrofit, program, and troubleshoot, it delivers worry-free continuous-duty operation even in extreme weather conditions. The operator consistently lives up to the tireless demands of manufacturing, transportation, municipality, utility and warehouse environments. It also works as a complete system when paired with safety devices and offers full control over access points via myQ® technology.

Popular Features

• Brushless DC Technology
  – Continuous-duty motor is more efficient and requires less maintenance, providing reliable DC performance 24/7.
• Robust, Lockable Enclosure
  – 14 ga. steel, weatherproof (NEMA 3R rated) cabinet prevents unauthorized access into the operator and protects it from the environment.
• Pad and Retrofit Mounting Options
  – Optional riser (MRIN) makes it easy to replace an existing operator, providing multiple mounting positions and better protection from the climate.
• Smooth Start/Stop Operation
  Extends the life of the operator and gate hardware.
• Battery Backup
  – Provides seamless operation by providing standby power when the power is down.
• Industrial Grade Gear-Driven Transmission
  – Rugged and efficient performance for reliable operation, including Class III & IV applications.
• Manual Disconnect
  – Lockable position allows gate to be opened manually when released.
• UL® Listed
  – Gate operator and monitored safety protection devices are tested together to provide a robust, secure system.
