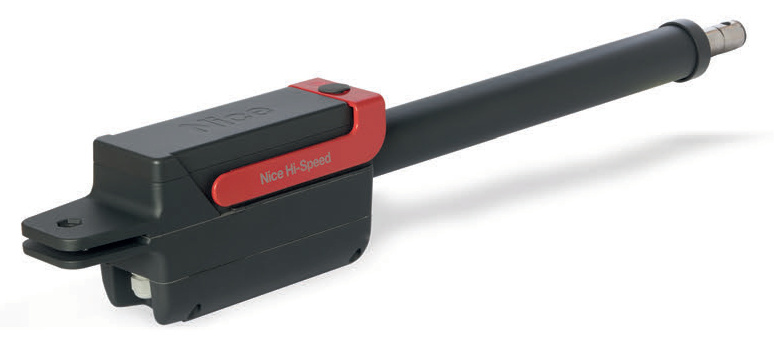

Nice Titan 6 Hi-Speed
For rapid operation of swing gates with leaves up to 6 m or 450 kg.
Electromechanical gearmotor, surface mounted, 24 VDC with magnetic encoder.
Guarantees fast maneuvers: 90° opening in about 19* seconds. Considering standard installation, excluding acceleration and deceleration.
Reliable:
The magnetic encoder keeps the set values stable over time and guarantees precise obstacle detection.
Easy to install:
Electrical connections easily accessible from above, thanks to the dedicated input. The fixing brackets are supplied with the motor.
Versatile:
The motor can also be installed in the bottom part of the gate leaf, at a distance of at least 110 mm from the ground.
Practical and safe:
The convenient key release located in the top part of the motor allows the gate leaves to be opened and closed manually in the event of a blackout.
Documentation
Nice Titan 6 Hi-Speed
For rapid operation of swing gates with leaves up to 6 m or 450 kg.
Electromechanical gearmotor, surface mounted, 24 VDC with magnetic encoder.
Guarantees fast maneuvers: 90° opening in about 19* seconds. Considering standard installation, excluding acceleration and deceleration.
Reliable:
The magnetic encoder keeps the set values stable over time and guarantees precise obstacle detection.
Easy to install:
Electrical connections easily accessible from above, thanks to the dedicated input. The fixing brackets are supplied with the motor.
Versatile:
The motor can also be installed in the bottom part of the gate leaf, at a distance of at least 110 mm from the ground.
Practical and safe:
The convenient key release located in the top part of the motor allows the gate leaves to be opened and closed manually in the event of a blackout.
| Power Supply (Vdc) | 24 |
|---|---|
| Absorption (A) | 7 |
| Power (W) | 150 |
| Speed (m/s) | 0.027 |
| Force (N) | 1900 |
| Work cycle (cycles/hour) | Continuous cycle |
| Protection Level (IP) | 54 |
| Working temp. (°C Min/Max) | -20 ÷ +50 |
| Dimension (mm) | 1080x105x170h |
| Weight (kg) | 9 |
