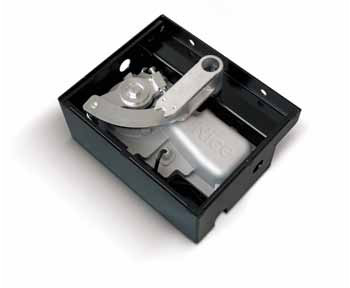

Nice Big-Fab
For swing gates with leaves up to 5 m, concealed underground installation.
Electromechanical gearmotor, 24 VDC, with magnetic encoder and mechanical stops.
Foundation boxes with mechanical stop in opening:
Electrophoretic painted (BFABBOX), with high resistance to corrosion.
Maximum freedom of choice:
Release from inside and outside, two freely lever-operated model, easy to operate with one hand.
Simple installation:
Mechanical stop system in closing integrated in motor. Standard 110° opening, 360° optional.
Documentation
Nice Big-Fab
For swing gates with leaves up to 5 m, concealed underground installation.
Electromechanical gearmotor, 24 VDC, with magnetic encoder and mechanical stops.
Foundation boxes with mechanical stop in opening:
Electrophoretic painted (BFABBOX), with high resistance to corrosion.
Maximum freedom of choice:
Release from inside and outside, two freely lever-operated model, easy to operate with one hand.
Simple installation:
Mechanical stop system in closing integrated in motor. Standard 110° opening, 360° optional.
| Power Supply (VDC) | 24 |
|---|---|
| Draw (A) | 7 |
| Power (W) | 170 |
| Speed (rpm) | 0.8 |
| Torque (Nm) | 400 |
| Work cycle (cycles/hour) | 45 |
| Protection Level (IP) | 67 |
| Working temp. (°C Min/Max) | -20 -;- +50 |
| Dimension (mm) | 400x325x152 h |
| Weight of Operator (kg) | 13.3 |
| Weight of Foundation Box (kg) | 20.3 |
