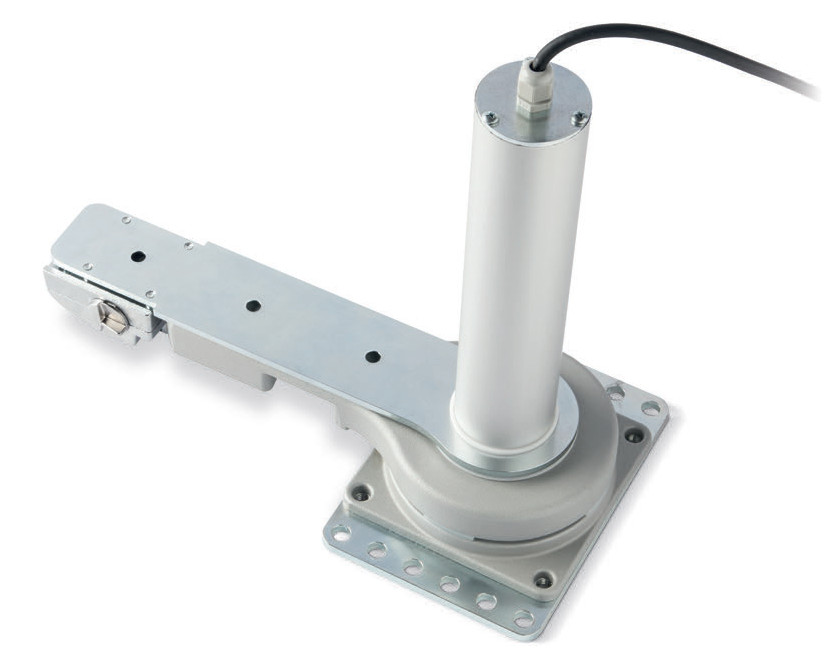

Nice Oltre
For swing gates with leaves up to 1.8 m and 100 kg. Concealed motor.
Electromechanical gearmotor, non-reversible, 24 VDC.
Minimum visual impact:
The motor is small enough to be easily installed inside the profiles of the gate leaf or in very slim posts (with a minimum diameter of 55 mm).
Easy to install:
The bottom-up installation simplifies fixing of the motor inside the post.
Resistant:
Die-cast aluminium structure, IP67, resists the most severe weather conditions.
Fast and reliable:
Complete opening (90°) of the leaf in about 1 0 seconds. Oltre has been tested for use at 60 cycles/hour, making it suitable for all contexts with intensive use.
Safe:
Easy-to-use external manual release; manual opening is always possible, without having to take the gate apart.
Documentation
Nice Oltre
For swing gates with leaves up to 1.8 m and 100 kg. Concealed motor.
Electromechanical gearmotor, non-reversible, 24 VDC.
Minimum visual impact:
The motor is small enough to be easily installed inside the profiles of the gate leaf or in very slim posts (with a minimum diameter of 55 mm).
Easy to install:
The bottom-up installation simplifies fixing of the motor inside the post.
Resistant:
Die-cast aluminium structure, IP67, resists the most severe weather conditions.
Fast and reliable:
Complete opening (90°) of the leaf in about 1 0 seconds. Oltre has been tested for use at 60 cycles/hour, making it suitable for all contexts with intensive use.
Safe:
Easy-to-use external manual release; manual opening is always possible, without having to take the gate apart.
| Power Supply (VDC) | 24 |
|---|---|
| Draw (A) | 1 |
| Power (W) | 25 |
| Speed (rpm) | 1.5 |
| Torque (Nm) | 150 |
| Work cycle (cycles/hour) | 60 |
| Protection Level (IP) | 67 |
| Working temp. (°C Min/Max) | -20 -;- +50 |
| Dimension (mm) | 305x145x346 h |
| Weight of Operator (kg) | 5.5 |
