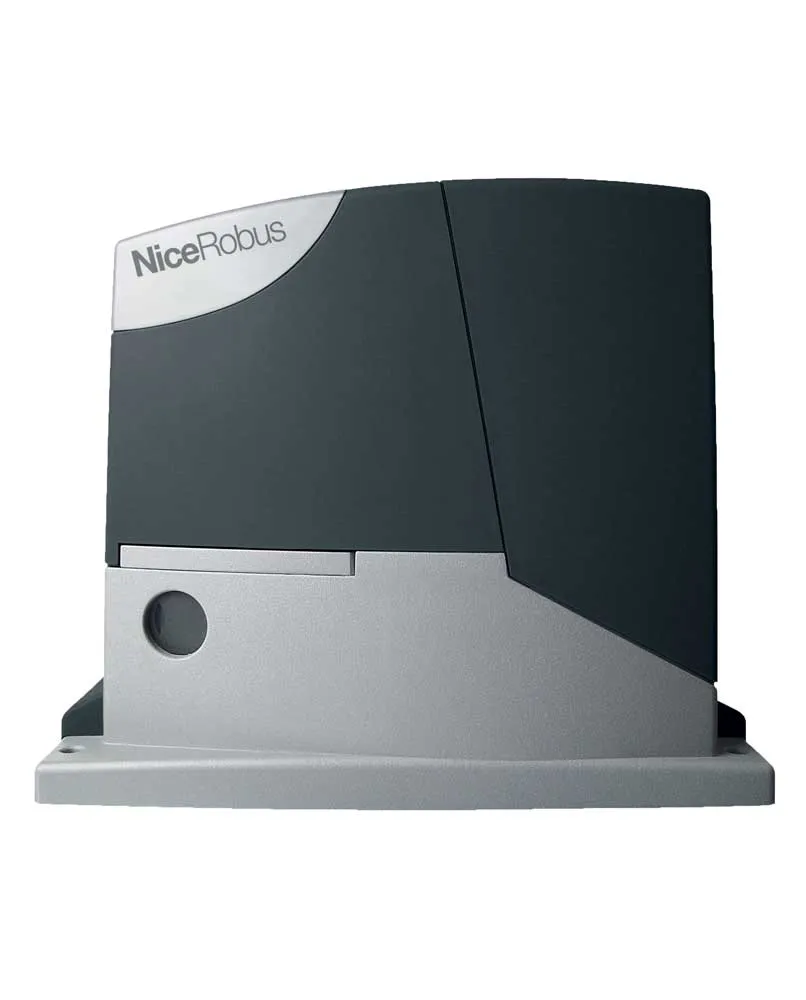

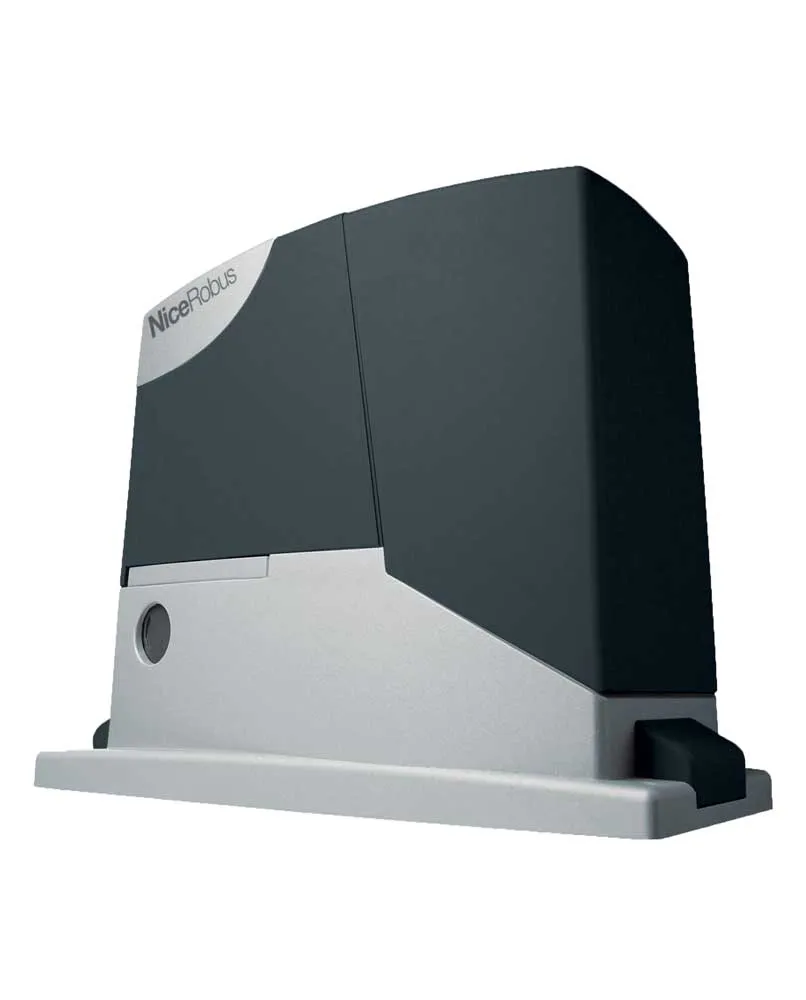

FOR SLIDING GATES WEIGHING UP TO 400KG
User-Friendly
The Nice BlueBUS technology, enables to power and control a maximum of seven couples of photocells from the MoonBus series using two wires only.
Practical

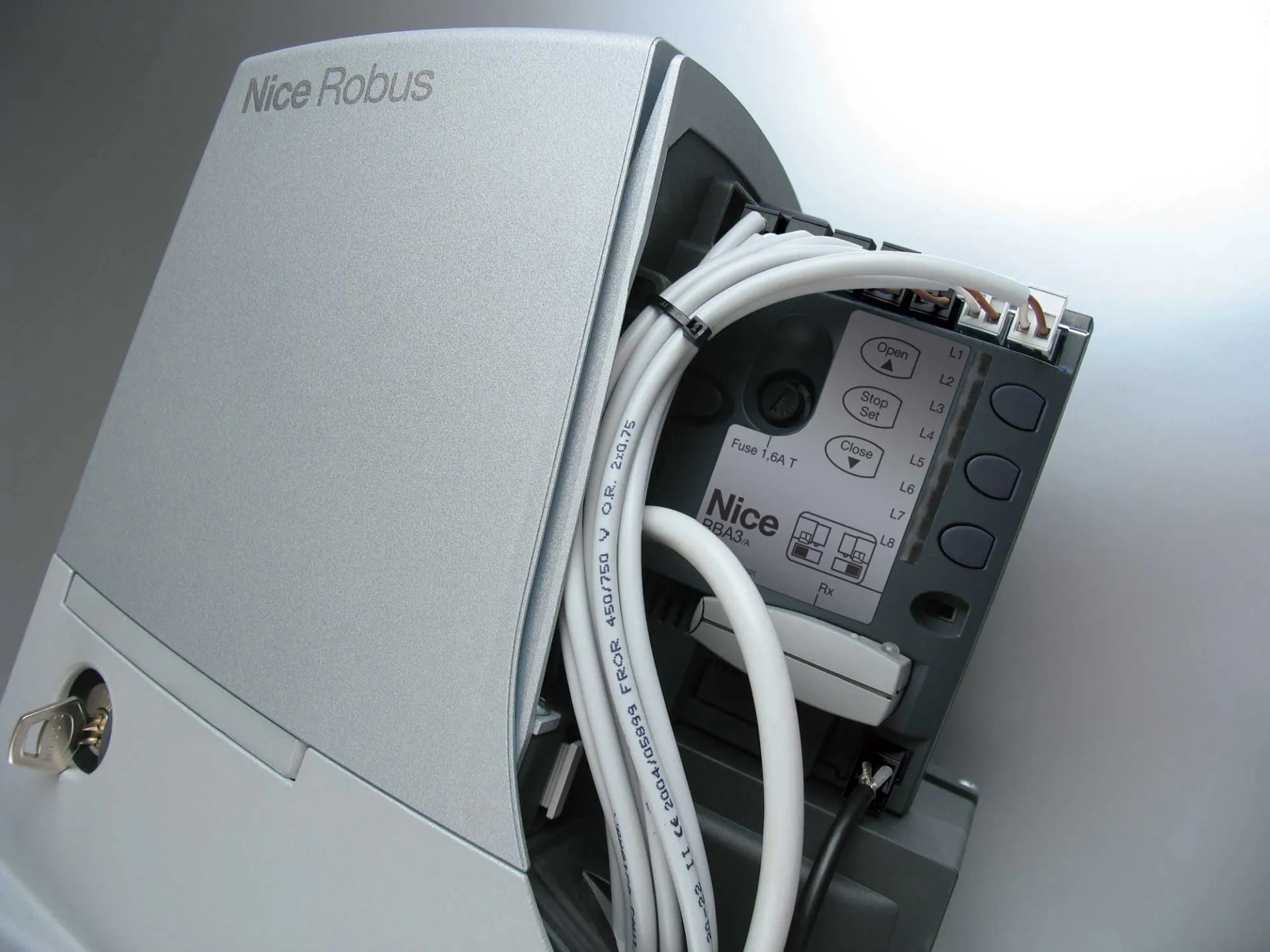

The control unit and PS124 buffer battery (optional) can be connected by means of a simple connector and can be housed directly inside the motor.
Advanced
Equipped with a temperature sensor: adapt the motor power to the climatic conditions and at the same time thermal cut-out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
Intelligent
Thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a flashing light. 8 programming levels.
Safe
Acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre. Sturdy: base and release in pressure die cast with easy to open handle.
Very quiet
Gear motor on bearings.
Documentation
User-Friendly
The Nice BlueBUS technology, enables to power and control a maximum of seven couples of photocells from the MoonBus series using two wires only.
Practical
The control unit and PS124 buffer battery (optional) can be connected by means of a simple connector and can be housed directly inside the motor.
Advanced
Equipped with a temperature sensor: adapt the motor power to the climatic conditions and at the same time thermal cut-out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
Intelligent
Thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a flashing light. 8 programming levels.
Safe
Acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre. Sturdy: base and release in pressure die cast with easy to open handle.
Very quiet
Gear motor on bearings.
| Power supply (Vac 60Hz) | 120 |
|---|---|
| Absorption (A) | 1.1 |
| Power (W) | 250 |
| Speed (m/s) | 0.34 |
| Force (N) | 400 |
| Work cycle (cycles/hour) | 35 |
| Protection Level (IP) | 44 |
| Working temp. (°C Min/Max) | -25÷+50 |
| Dimension (mm) | 330x195x277 h |
| Weight (kg) | 8 |
