Nice Slight
FOR SLIDING GATES WEIGHING UP TO 400KG
Motor with integrated control unit and absolute encoder.
Innovative ultra-compact design: the vertical configuration of the motor makes it easy to install even in narrow openings.
Simple: thanks to the BlueBUS system allowing connections with just two wires between the control unit and up to 7 pairs of photocells and control, safety and signalling devices.
Integrated LED light: programmable as either a flashing or courtesy light, warns of gate move ment during opening and closing.
Master/slave selection: also automatically synchronises 2 motors, allowing automation of sliding gates with two opposing leaves.
Smart: thanks to obstacle detection and auto matic programming of operating times. Self-diagnostics with indications via the flashing light.
Safe: adjustable acceleration and deceleration at the start and end of each manoeuvre.
Integrated absolute limit switch.
Practical: control unit and PS124 buffer batteries (optional) connected by practical guided plug-in connector.
Documentation

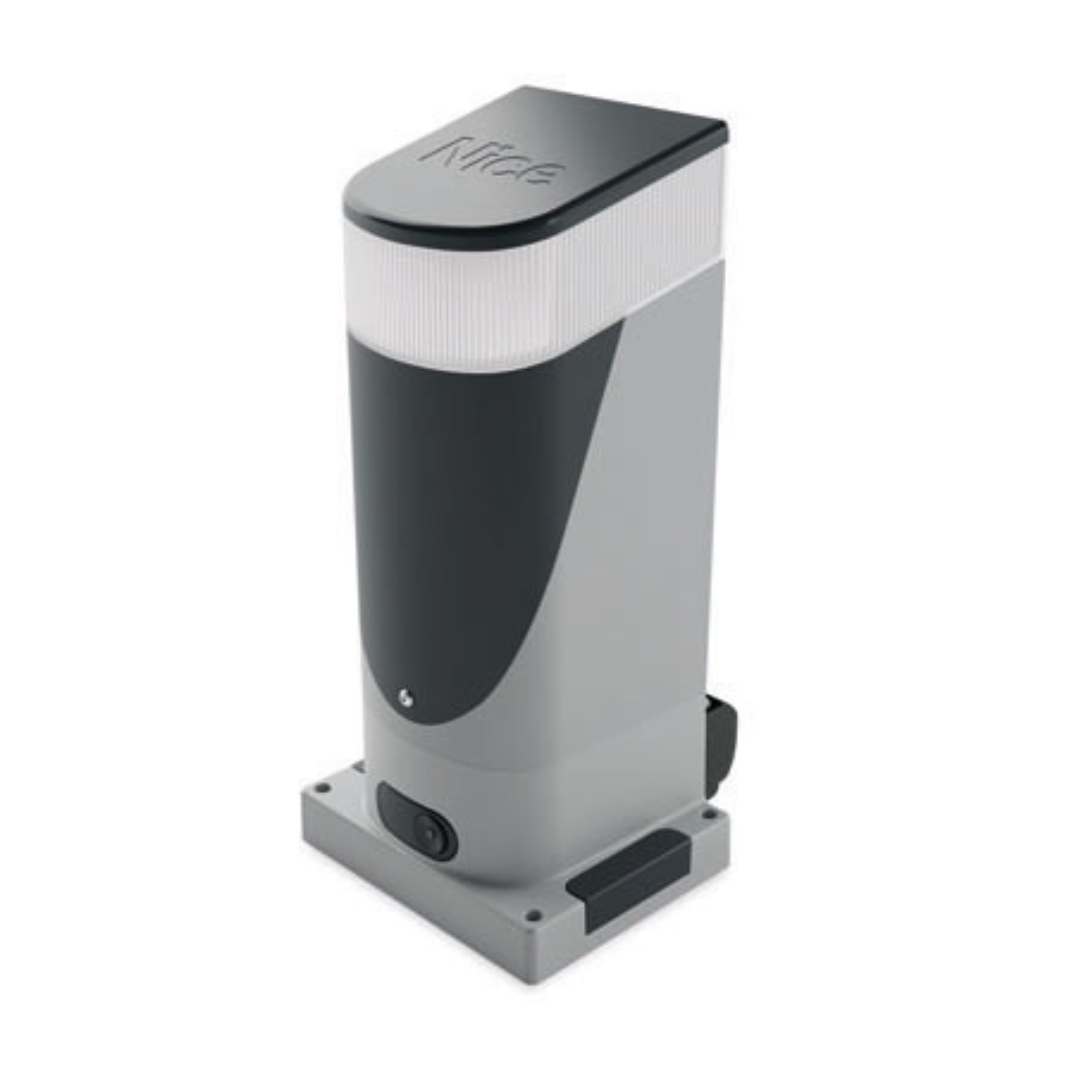

Nice Slight 400
Motor with integrated control unit and absolute encoder.
Innovative ultra-compact design: the vertical configuration of the motor makes it easy to install even in narrow openings.
Simple: thanks to the BlueBUS system allowing connections with just two wires between the control unit and up to 7 pairs of photocells and control, safety and signalling devices.
Integrated LED light: programmable as either a flashing or courtesy light, warns of gate move ment during opening and closing.
Master/slave selection: also automatically synchronises 2 motors, allowing automation of sliding gates with two opposing leaves.
Smart: thanks to obstacle detection and auto matic programming of operating times. Self-diagnostics with indications via the flashing light.
Safe: adjustable acceleration and deceleration at the start and end of each manoeuvre.
Integrated absolute limit switch.
Practical: control unit and PS124 buffer batteries (optional) connected by practical guided plug-in connector.
| Power Supply (VAC 60 Hz) | 120 |
|---|---|
| Absorption (A) | 1.1 |
| Power (W) | 250 |
| Speed (m/s) | 0.34 |
| Force (N) | 400 |
| Work cycle (cycles/hour) | 35 |
| Protection Level (IP) | 44 |
| Working temp. (°C Min/Max) | -20 ÷ +50 |
| Dimension (mm) | 191x198x405 h |
| Weight (kg) | 6.5 |
