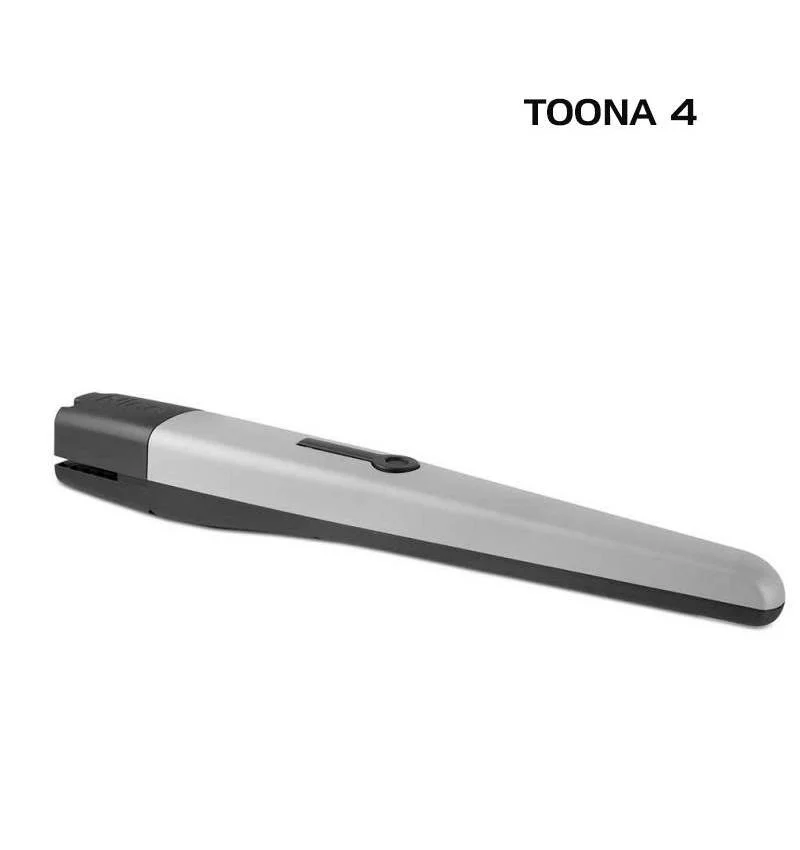

Nice Toona 4
For swing gates with leaves up to 3 m. Ideal for residential application.
Electromechanical gearmotor, surface mounted. Available in 24 VDC version, with magnetic encoder.
Reliable and with a long working life:
Thanks to the body with two sturdy polyester painted aluminium shells; more weather-resistant.
Moving internal parts made entirely of steel, light alloys and technopolymers.
Quiet:
Patented arrangement of internal components and bronze screw.
Handy, capacious connection compartment: quick and easy access from above to the internal components located in the upper compartment of the motor.
Easy installation and maintenance:
With built-in condenser.
Documentation
Nice Toona 4
For swing gates with leaves up to 3 m. Ideal for residential application.
Electromechanical gearmotor, surface mounted. Available in 24 VDC version, with magnetic encoder.
Reliable and with a long working life:
Thanks to the body with two sturdy polyester painted aluminium shells; more weather-resistant.
Moving internal parts made entirely of steel, light alloys and technopolymers.
Quiet:
Patented arrangement of internal components and bronze screw.
Handy, capacious connection compartment: quick and easy access from above to the internal components located in the upper compartment of the motor.
Easy installation and maintenance:
With built-in condenser.
| Power Supply (VDC) | 24 |
|---|---|
| Draw (A) | 5 |
| Power (W) | 120 |
| Speed (m/s) | 0.016 |
| Force (N) | 1800 |
| Work cycle (cycles/hour) | 95 |
| Protection Level (IP) | 44 |
| Working temp. (°C Min/Max) | -20 ÷+50 |
| Dimension (mm) | 820x115x105 h |
| Weight (kg) | 6 |
